PRODUCT

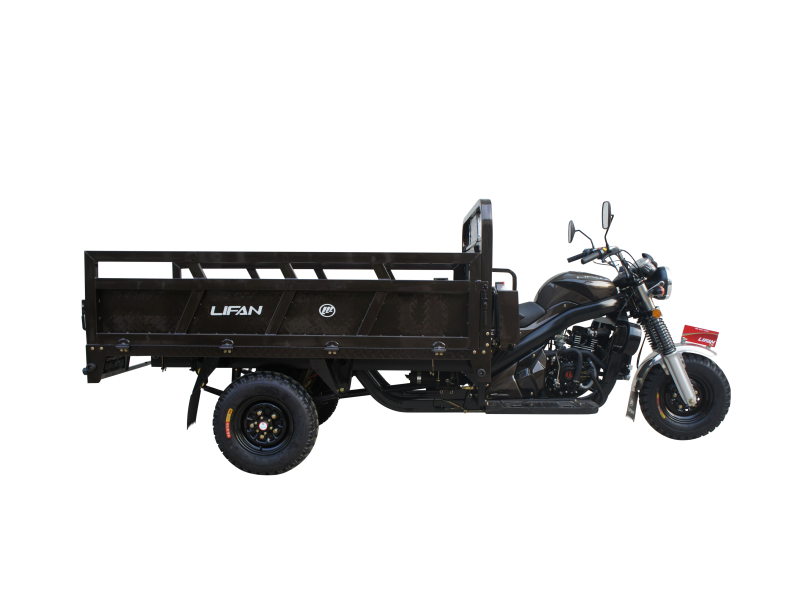

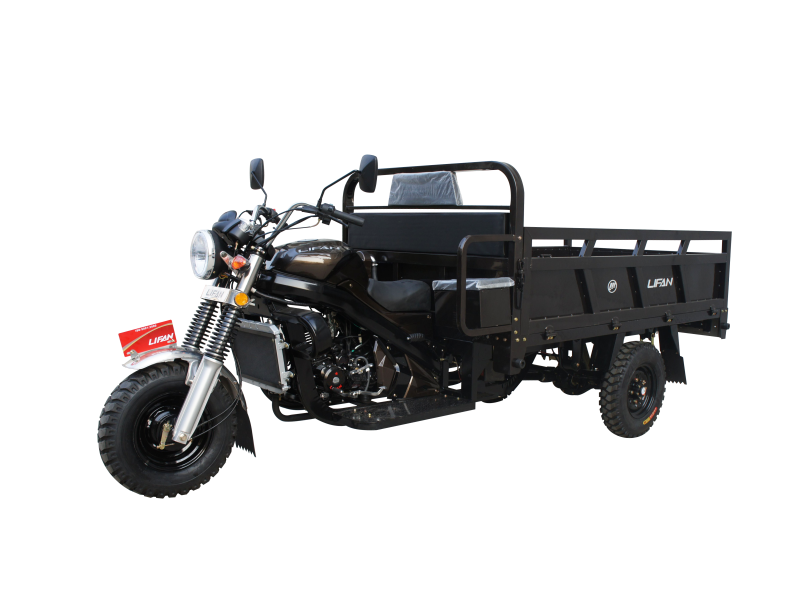

LF320ZH-8
|
SPECIFICATIONS
|
|
|
Three-Wheeler Model
|
LF200ZH-8/LF250ZH-8/LF320ZH-8
|
|
Dimension (L×W×H mm)
|
3730×1360×1420
|
|
Rear Track (mm)
|
1145
|
|
Wheelbase (mm)
|
2600
|
|
Fuel Tank Capacity (L)
|
23
|
|
Tire (front/rear)
|
5.00-12/5.00-12
|
|
Brake (front/rear)
|
drum/drum
|
|
Net Weight (kg)
|
430
|
|
Max. Speed (km/h)
|
50
|
|
Carriage Dimension (mm)
|
2200×1350×570
|
|
Transmission
|
5 gears
|
|
Bore×Stroke (mm)
|
63.5×65/70×65/76×66.2
|
|
Start
|
electric/kick start
|
|
Compression Ratio
|
9.9:1/9.5:1/9.0:1
|
|
Engine Type
|
4-stroke, water-cooled
|
|
Displacement (mL)
|
205.9/250.0/300.3
|
|
Max. Power (kW@rpm)
|
11.7@7500/12.8@7000/12.5@6000
|
|
Max. Torque (N.m@rpm)
|
15.5@5500/19.5@5500/20.5@4500
|
|
Fuel Consumption (L/100km)
|
≤4.3
|
|
SPECIFICATIONS
|
|
|
Three-Wheeler Model
|
LF200ZH-8/LF250ZH-8/LF320ZH-8
|
|
Dimension (L×W×H mm)
|
3730×1360×1420
|
|
Rear Track (mm)
|
1145
|
|
Wheelbase (mm)
|
2600
|
|
Fuel Tank Capacity (L)
|
23
|
|
Tire (front/rear)
|
5.00-12/5.00-12
|
|
Brake (front/rear)
|
drum/drum
|
|
Net Weight (kg)
|
430
|
|
Max. Speed (km/h)
|
50
|
|
Carriage Dimension (mm)
|
2200×1350×570
|
|
Transmission
|
5 gears
|
|
Bore×Stroke (mm)
|
63.5×65/70×65/76×66.2
|
|
Start
|
electric/kick start
|
|
Compression Ratio
|
9.9:1/9.5:1/9.0:1
|
|
Engine Type
|
4-stroke, water-cooled
|
|
Displacement (mL)
|
205.9/250.0/300.3
|
|
Max. Power (kW@rpm)
|
11.7@7500/12.8@7000/12.5@6000
|
|
Max. Torque (N.m@rpm)
|
15.5@5500/19.5@5500/20.5@4500
|
|
Fuel Consumption (L/100km)
|
≤4.3
|
